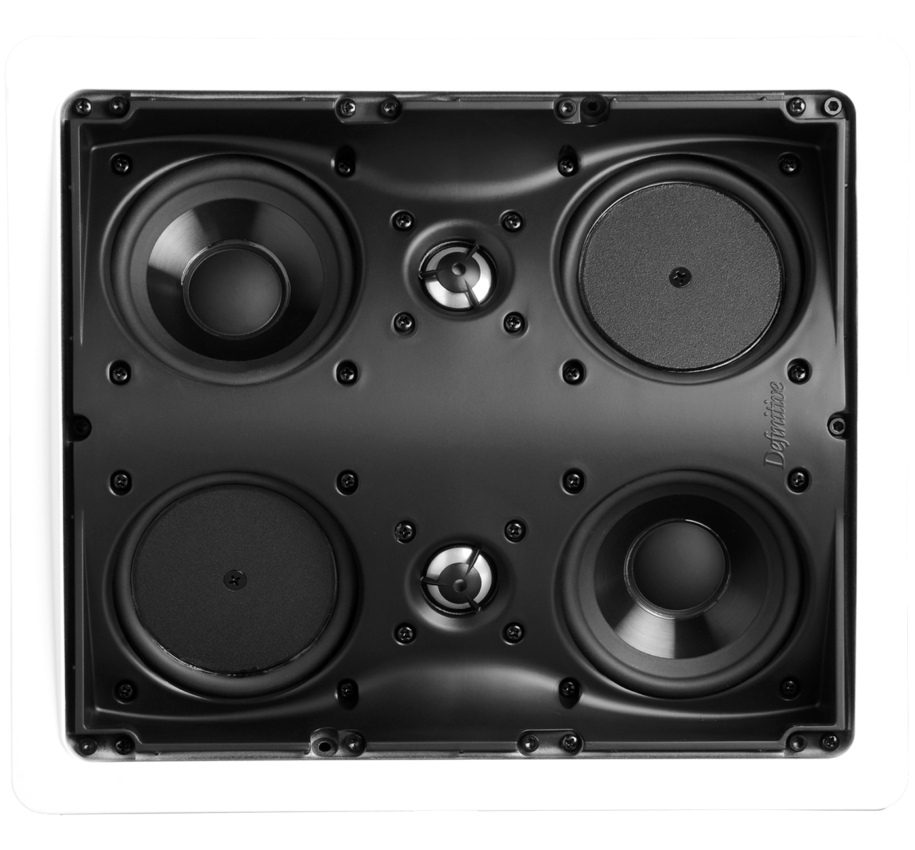

The Reference Line Source II enclosed full-range loudspeaker delivers sonically sharp audio without vibration or buzz. Non-resonant sealed medite cabinets produce tight bass and clear midrange. A pure aluminum dome tweeter, two pressure-driven Low Bass radiators and their extraordinary performance make the RLS II perfect for left, right, center or surround applications in home theaters or multichannel music systems.Read More
View Delivery & Pickup OptionsAdd Postal Code
Deeper bass pours through a pair of 6.5" pressure-coupled Low Bass radiators
Integrated wood enclosure supplies uncoloured midrange audio with greater detail
Easy installation with rotating dogleg clamps for non-resonant mounting
Smooth high frequency response rings true from a pure aluminum dome tweeter set among high definition bass/mid drivers.
Enclosed in dense wood medite cabinets for vibration-free sound, the UIW RLS II reveals natural, uncoloured midrange and tight, detailed bass.
With a flush mount design and rotating dogleg clamps that provide secure, non-resonant mounting, the UIW RLS II is easily installed in both new and existing construction applications.
The sound you demand from the finest freestanding loudspeakers, now in a full-range, flush mount speaker engineered to hide within your walls.
General Specs | |
| Weight Kilogram | 6.350288 |
| MPN | UDTA |
| Color | Black |
| Impedance | 8 ohms |
| Number of Speakers | 1 |
Overall | |
| Total Pieces | 1 |
Accessories | |
| Included Accessories | (1) Wall Mounting Template; (1) Paint Mask; (1) Paintable Grille; (1) Self Adhering Foam Gasket |
| Optional Accessories | (1) Rough-in Kit RBRL - Pre-Construction Bracket - Sold Separate |
Warranty | |
| Cabinet Warranty | 5 years |
| Drivers Warranty | 5 years |
| Original Purchaser Only | Yes |
Shipping Cartons | |
| Carton 1 | 35" (88.9 cm) h x 11" (27.94 cm) w x 9" (22.86 cm) d - 19 lbs (8.62 kg) |
In-Wall and In-Ceiling | |
| Quantity Included | 1 |
| Availability | US |
| Orientation | Vertical |
| Driver Complement | (1) 1" (2.54 cm) d (Round) - Tweeter; (2) 6.5" (16.51 cm) d (Round) - Mid/Woofer; (2) 6.5" (16.51 cm) d (Round) - Bass Radiator |
| Depth | 3.81" (9.68 cm) |
| Grille Dimensions | 29.75" (75.57 cm) h x 8.13" (20.65 cm) w |
Crossover | |
| Peak Power Handling | 350 watts |
| A/V Receiver Crossover Settings | Small (40 Hz) |
Inputs | |
| Speaker Inputs | (1) Pair of Heavy Duty, Spring Loaded - Gold Plated |
Audio Quality | |
| Total Frequency Response | 22 Hz → 30 Hz |
| Nominal Impedance | 8 ohms |
| Max Sensitivity (1 watt @ 1 meter) | 92 dB |
In-Wall Mount | |
| Shape | Rectangle |
| Dimensions | 28.5" (72.39 cm) h x 7" (17.78 cm) w |
