Product Dimensions 12.75"h x 8.75"w x 3.75"d
Performance, invisibility and ease of installation make the DT8LCR the perfect in-wall speaker for stealth home theaters and hidden multi-room systems. Optimized for superior quality and sound, every component in this custom install loudspeaker was developed from scratch for a listening experience that delivers and a product that endures. Because with the DT Series, good enough is never enough.Read More
View Delivery & Pickup OptionsAdd Postal Code
Exclusive 8" composite mineral-filled polypropylene driver cones offer superior transparency
Annealed aluminum tweeter dome provides great transients and smooth response
High definition crossover network with Mylar capacitors delivers the purest high frequencies
Improved sound dispersion and off-axis response casts incredible sound throughout the room
Each component in DT Series speakers is developed from the same technology and engineering excellence as our most expensive offerings for great performance, easy installation and near invisibility.
Crossover is crucial to high-end audio quality. The high definition crossover network in DT Series speakers is how each one delivers the purest high frequencies.
Great transients and smooth response are the direct result of the perfect rigidity and lightness of an acoustically optimized annealed aluminum tweeter dome.

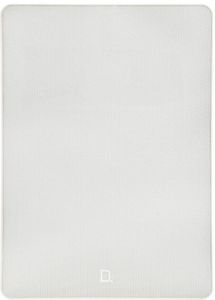

Speakers that visually dominate the room distract from the sound. DT Series speakers have whisker-thin micro-perf grilles with slim bezels that can be custom painted to blend in.
General Specs | |
| Weight Kilogram | 2.721552 |
| MPN | UGDE |
| RMS Power Handling (Watts) | 225 |
| Height (cm.) | 32.385 |
| Depth (cm.) | 9.525 |
| Width (cm) | 22.225 |
| Color | Black |
| Impedance | 8 ohms |
| Number of Speakers | 1 |
| Depth (in.) | 3.75 |
| Height (in.) | 12.75 |
| Width (in.) | 8.75 |
General | |
| colour/Finishes | White |
| Sold As | Each |
| Availability | US |
| Depth | 3.75" (9.53 cm) |
| Grille Dimensions | 13.81" (35.08 cm) h x 9.87" (25.07 cm) w |
Driver Complement | |
| Tweeter | (1) 1" (2.54 cm) d (Round) Pivoting Dome Tweeter |
| Mid/Woofer | (1) 8" (20.32 cm) d (Round) |
In-Wall Mount | |
| Shape | Rectangle |
| Dimensions | 12.75" (32.39 cm) h x 8.75" (22.23 cm) w |
Audio Quality | |
| Total Frequency Response | 27 Hz to 30 Hz |
| Nominal Impedance | 8 Ohms |
| Max Sensitivity (1 watt @ 1 meter) | 89 dB |
Crossover | |
| A/V Receiver Crossover Settings | Small (60 Hz) |
Warranty | |
| Drivers Warranty | 5 Years |
Shipping Cartons | |
| Carton 1 | 16" (40.64 cm) h x 12" (30.48 cm) w x 6.4" (16.26 cm) d - 6 lbs (2.72 kg) |
