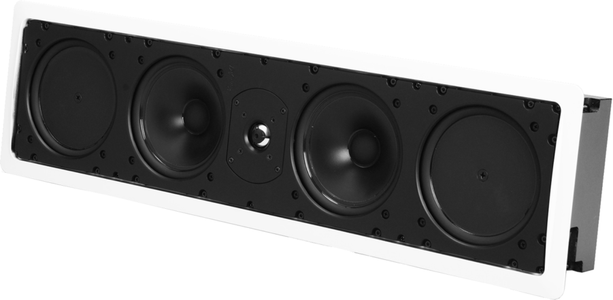

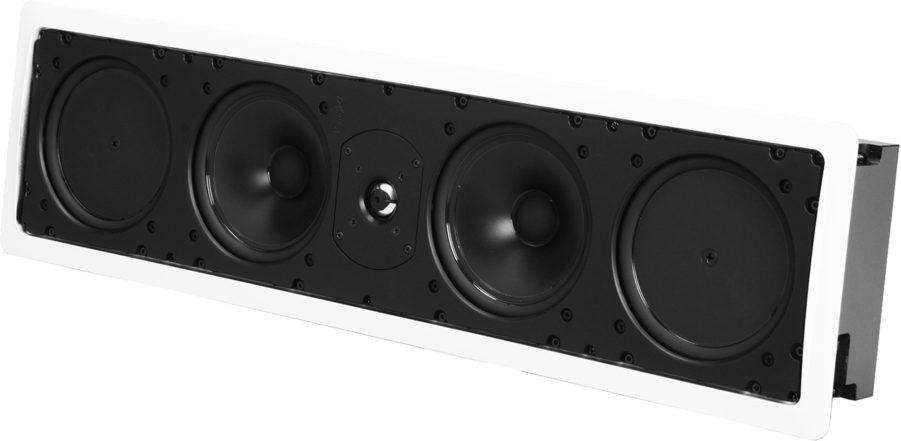

The Reference Line Source II enclosed full-range loudspeaker delivers sonically sharp audio without vibration or buzz. Non-resonant sealed medite cabinets produce tight bass and clear midrange. A pure aluminum dome tweeter, two pressure-driven Low Bass radiators and their extraordinary performance make the RLS II perfect for left, right, center or surround applications in home theaters or multichannel music systems.Read More
View Delivery & Pickup OptionsAdd Postal Code
The Reference Line Source II enclosed full-range loudspeaker delivers sonically sharp audio without vibration or buzz. Non-resonant sealed medite cabinets produce tight bass and clear midrange. A pure aluminum dome tweeter, two pressure-driven Low Bass radiators and their extraordinary performance make the RLS II perfect for left, right, center or surround applications in home theaters or multichannel music systems.
Higher impact punch from dual 6.5" cast basket drivers
Deeper bass pours through a pair of 6.5" pressure-coupled Low Bass radiators
Integrated wood enclosure supplies uncoloured midrange audio with greater detail
Easy installation with rotating dogleg clamps for non-resonant mounting
Available Finishes: White
Smooth high frequency response rings true from a pure aluminum dome tweeter set among high definition bass/mid drivers.
Enclosed in dense wood medite cabinets for vibration-free sound, the UIW RLS II reveals natural, uncoloured midrange and tight, detailed bass.
With a flush mount design and rotating dogleg clamps that provide secure, non-resonant mounting, the UIW RLS II is easily installed in both new and existing construction applications.
The sound you demand from the finest freestanding loudspeakers, now in a full-range, flush mount speaker engineered to hide within your walls.
General Specs | |
| Weight Kilogram | 8.618248 |
| MPN | UDEA |
| RMS Power Handling (Watts) | 350 |
| Height (cm.) | 72.39 |
| Width (cm) | 17.78 |
| Color | White |
| Impedance | 8 ohms |
| Number of Speakers | 1 |
| Height (in.) | 28.5 |
| Width (in.) | 7 |
Overall | |
| Total Pieces | 1 |
Accessories | |
| Included Accessories | (1) Wall Mounting Template; (1) Paint Mask; (1) Paintable Grille; (1) Self Adhering Foam Gasket |
| Optional Accessories | (1) Rough-in Kit RBRL - Pre-Construction Bracket - Sold Separate |
Warranty | |
| Cabinet Warranty | 5 years |
| Drivers Warranty | 5 years |
| Original Purchaser Only | Yes |
Shipping Cartons | |
| Carton 1 | 35" (88.9 cm) h x 11" (27.94 cm) w x 9" (22.86 cm) d - 19 lbs (8.62 kg) |
In-Wall and In-Ceiling | |
| Quantity Included | 1 |
| Availability | US |
| Orientation | Vertical |
| Driver Complement | (1) 1" (2.54 cm) d (Round) - Tweeter; (2) 6.5" (16.51 cm) d (Round) - Mid/Woofer; (2) 6.5" (16.51 cm) d (Round) - Bass Radiator |
| Depth | 3.81" (9.68 cm) |
| Grille Dimensions | 29.75" (75.57 cm) h x 8.13" (20.65 cm) w |
Crossover | |
| Peak Power Handling | 350 watts |
| A/V Receiver Crossover Settings | Small (40 Hz) |
Inputs | |
| Speaker Inputs | (1) Pair of Heavy Duty, Spring Loaded - Gold Plated |
Audio Quality | |
| Total Frequency Response | 22 Hz → 30 Hz |
| Nominal Impedance | 8 Ohms |
| Max Sensitivity (1 watt @ 1 meter) | 92 dB |
In-Wall Mount | |
| Shape | Rectangle |
| Dimensions | 28.5" (72.39 cm) h x 7" (17.78 cm) w |
