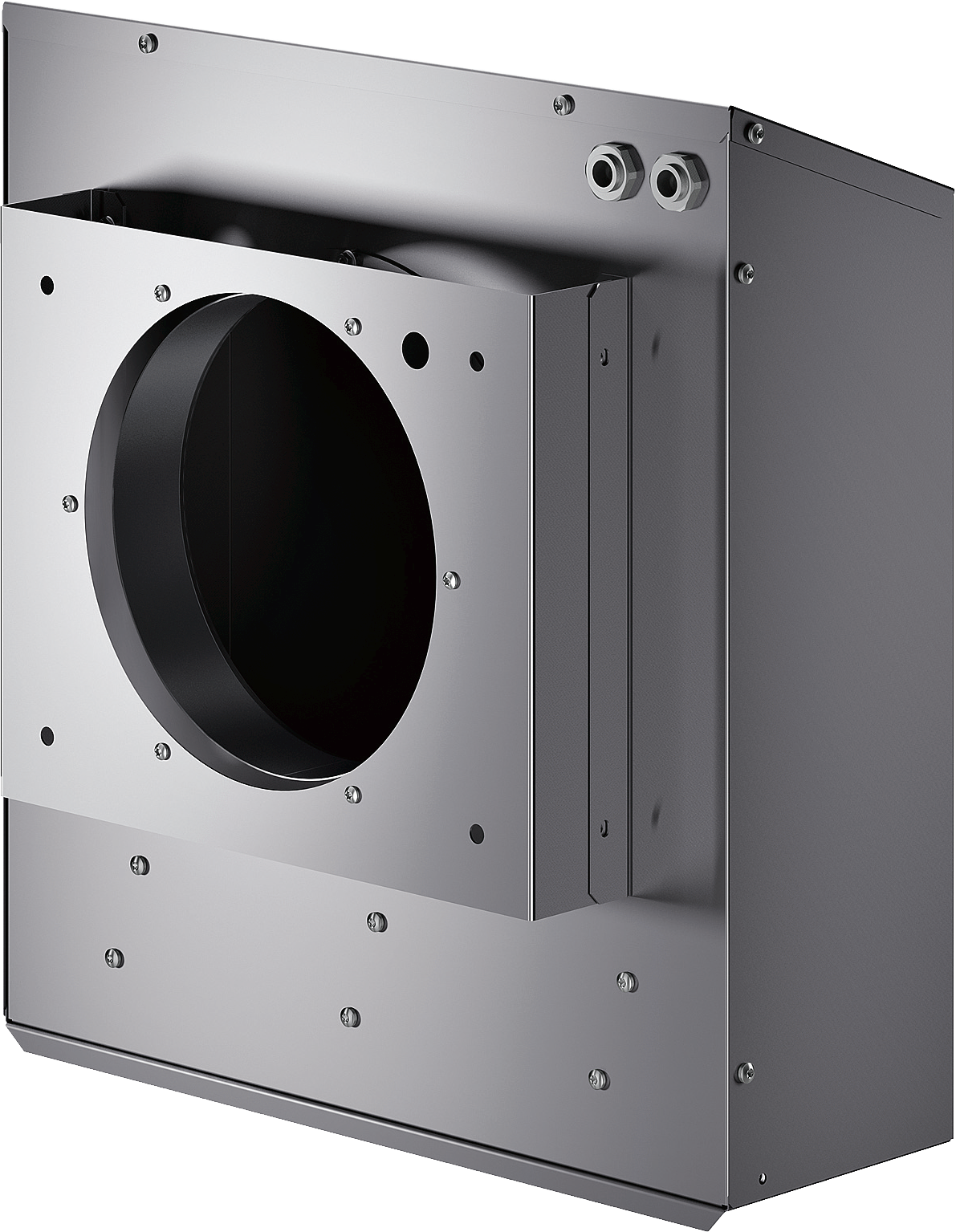

Gaggenau 400 Series Remote Blower

Product Overview

This remote extraction fan unit offers maximum air output for downdraft and ceiling ventilation as well as motor less hoods. As it is installed outside, the noise level in the kitchen is reduced.

Main Facts

Powerful remote fan unit to combine with motor less appliances 400 series

Efficient BLDC technology

Output

Performance output level 3/Intensive:

Air output according to EN 61591.

Sound power and sound pressure depending on built-in situation.

Air extraction:

720 / 910 m³/h.

Power levels depend on the motor less appliances, see table on page XX.

Features

3 electronically controlled power levels and one intensive mode.

Fan technology with highly efficient, brushless DC motor (BLDC).

Including sound insulation to minimize the noise level.

Stainless steel housing.

Pipe connection pieces on intake side: 1x NW 200 round.

Retaining bracket for installation on an outside wall enclosed.

Connection

Total connected load 170 W.

Connecting cable 1.8 m, pluggable.

Network cable 5 m.
