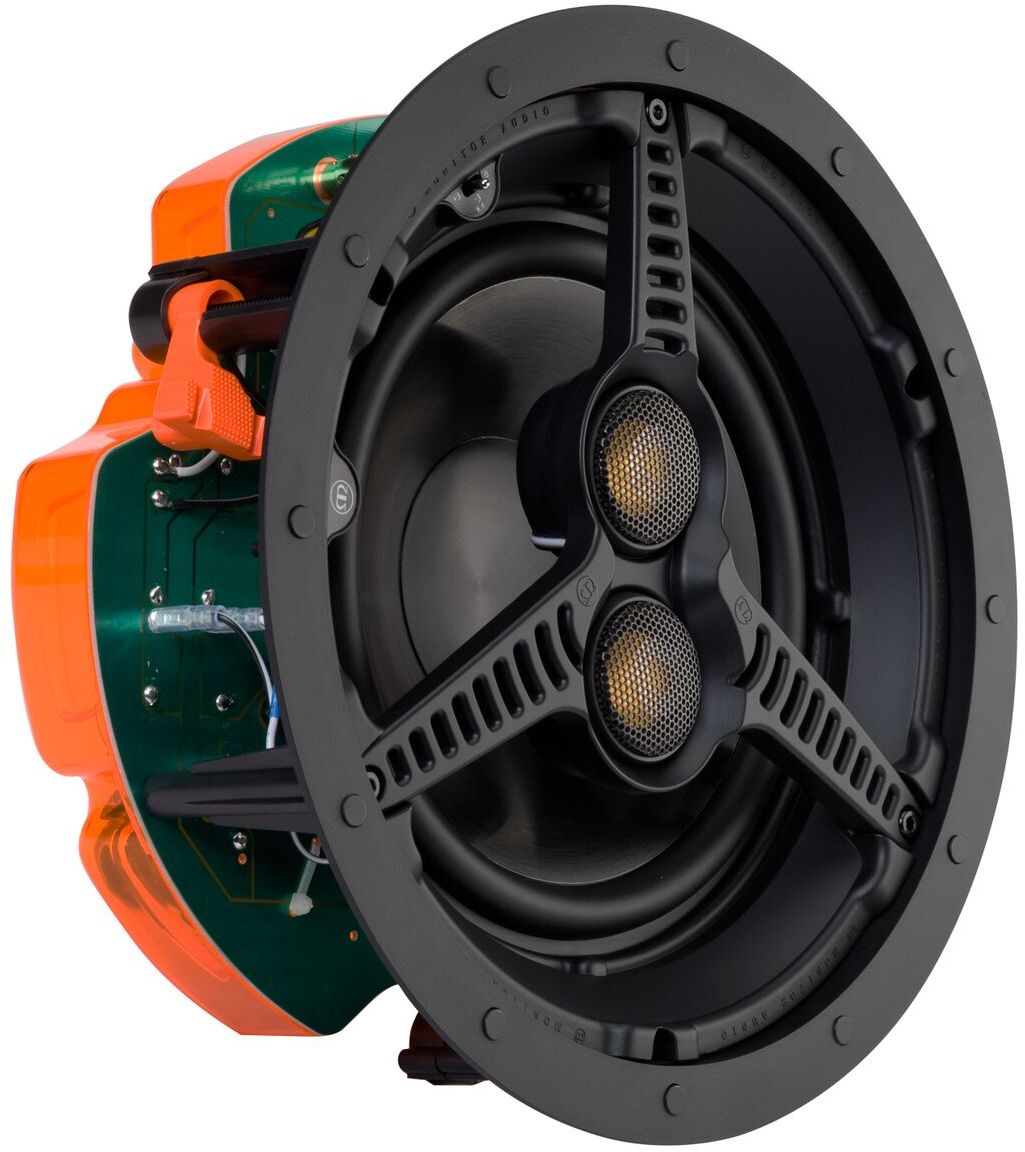

Features dual, independent, pivoting 1-inch C-CAM tweeters and an 8-inch MMP II dual wound voice coil bass driver, for high performance stereo sound from a single speaker.Read More
View Delivery & Pickup OptionsAdd Postal Code
Ideal for bathrooms, hallways, or any area where space does not allow for stereo pairs.
Optional square grille can be used with this model.
8-inch MMP II dual wound voice coil bass driver.
General Specs | |
| Product Weight (lbs.) | 6.6 |
| Frequency Response | 50 Hz – 25 kHz |
| Manufacturer Warranty | Limited Lifetime |
| RMS Power Handling (Watts) | 120 |
| Color | Black |
| Impedance | 6 ohms |
| Number of Speakers | 1 |
| Sensitivity | 90 |
| Speaker Type | In-Ceiling Speakers |
Additional Specifications | |
| Frequency Response | 50 Hz – 25 kHz |
| Nominal Impedance | 6 + 6 ohms |
| Sensitivity (1W@1M) | 90 dB |
| Maximum SPL | 111.6 dBA |
| Power Handling (RMS) | 120 W |
| Recommended Amplifier Requirements | 30 – 120 W |
| Drive Unit Complement | 8" MMP II cone bass driver, 2 x 1" C-CAM pivoting Gold Dome tweeter |
| Adjustment Controls | HF Level Switch (+3 dB / 0 dB / -3 dB) |
| Overall Diameter (Including Grille) | 285 mm (11 1/4") |
| Overall Depth (Including Grille) | 126 mm (4 15/16") |
| Mounting Depth | 122 mm (4 13/16") |
| Cut-Out Hole Diameter | 247 mm (9 3/4") |
| Fixing Type | 3 position Tri-Grip dog fixings |
| Optional Square Grille - Outer Dimensions | 285 x 285 mm (11 1/4") |
| Construction Material | Mineral filled ABS, RoHS compliant |
| Weight | 3 kg (6 lb 10 oz) |
| Pre-Construction Bracket | CB8 Pre-Construction Bracket (Green) |
| Back Box | CCBOX-R / CMBOX-R |
