Features surround mode selection of dipole (diffuse sound) or bipole (direct sound) operation for super-discreet home theatre sound.Read More
View Delivery & Pickup OptionsAdd Postal Code

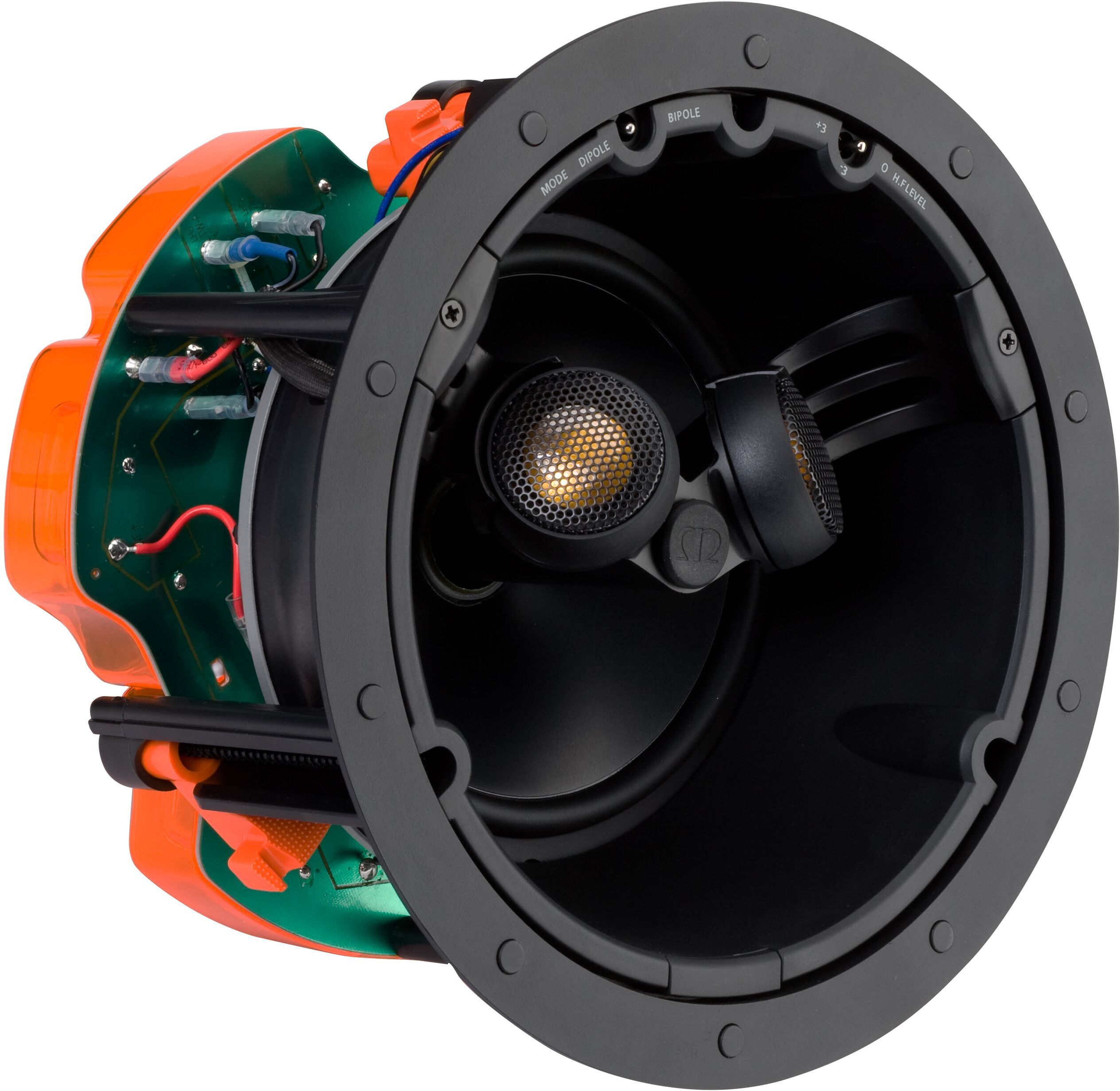

Incorporates a 6 1/2 inch C-CAM bass driver and dual 1-inch C-CAM Gold Dome tweeters mounted at a precise fixed-angle for optimised performance.
Optional square or premium grille can be used with this model.
Features surround mode selection of dipole
General Specs | |
| Product Weight (lbs.) | 4.63 |
| Frequency Response | 60 Hz – 30 kHz |
| Manufacturer Warranty | Limited Lifetime |
| RMS Power Handling (Watts) | 85 |
| Color | Black |
| Impedance | 6 ohms |
| Number of Speakers | 1 |
| Sensitivity | 88.5 |
| Speaker Type | In-Ceiling Speakers |
Additional Specifications | |
| Frequency Response | 60 Hz – 30 kHz |
| Nominal Impedance | 6 ohms |
| Sensitivity (1W@1M) | 88.5 dB |
| Maximum SPL | 108 dBA |
| Power Handling (RMS) | 85 W |
| Recommended Amplifier Requirements | 20 – 85 W |
| Drive Unit Complement | 6 1/2" C-CAM cone bass driver, 2 x 1” C-CAM pivoting Gold Dome tweeter |
| Adjustment Controls | HF Level Switch (+3 dB / 0 dB / -3 dB), Bipole / Dipole Switch |
| Overall Diameter (Including Grille) | 250 mm (9 13/16") |
| Overall Depth (Including Grille) | 154 mm (6 1/16") |
| Mounting Depth | 150 mm (5 7/8") |
| Cut-Out Hole Diameter | 211 mm (8 1/4") |
| Optional Square Grille - Outer Dimensions | 249 x 249 mm (9 3/16") |
| Fixing Type | 3 position Tri-Grip dog fixings |
| Construction Material | Mineral filled ABS, RoHS compliant |
| Weight | 2.08 kg (4 lb 10 oz) |
| Pre-Construction Bracket | CB6 Pre-Construction Bracket (Purple) |
| Back Box | CCBOX-R / CMBOX-R |
