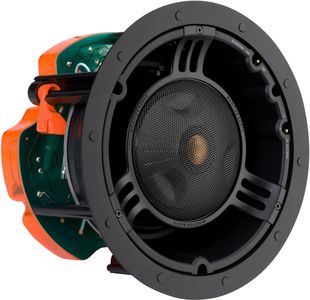

Features a 6 1/2 inch C-CAM bass driver and a pivoting IDC module, housing a 4-inch C-CAM RST inverted midrange driver and a 1-inch C-CAM Gold Dome tweeter.Read More
View Delivery & Pickup OptionsAdd Postal Code
True 3-way design provides rich midrange detail, higher system output, greater power handling, and superior vocal intelligibility and sound localisation.
Optional square or premium grille can be used with this model.
Optimum imaging and set-up are established via the pivoting IDC, high frequency (+3 dB /0 dB / -3 dB) level adjustment, and boundary compensation (on / off) controls.
General Specs | |
| Product Weight (lbs.) | 6.63 |
| Frequency Response | 60 Hz – 30 kHz |
| Manufacturer Warranty | Limited Lifetime |
| RMS Power Handling (Watts) | 85 |
| Color | Black |
| Impedance | 6 ohms |
| Number of Speakers | 1 |
| Sensitivity | 88.5 |
| Speaker Type | In-Ceiling Speakers |
Additional Specifications | |
| Frequency Response | 60 Hz – 30 kHz |
| Nominal Impedance | 6 ohms |
| Sensitivity (1W@1M) | 88.5 dB |
| Maximum SPL | 108 dBA |
| Power Handling (RMS) | 85 W |
| Recommended Amplifier Requirements | 20 – 85 W |
| Drive Unit Complement | 6 1/2" C-CAM cone bass driver, pivoting IDC module housing, 4" C-CAM RST inverted mid range driver, 1" C-CAM Gold Dome tweeter |
| Adjustment Controls | HF Level Switch (+3 dB / 0 dB / -3 dB), Boundary Compensation Switch |
| Overall Diameter (Including Grille) | 250 mm (9 13/16") |
| Overall Depth (Including Grille) | 154 mm (6 1/16") |
| Mounting Depth | 150 mm (5 7/8") |
| Cut-Out Hole Diameter | 211 mm (8 1/4") |
| Optional Square Grille - Outer Dimensions | 249 x 249 mm (9 3/16") |
| Fixing Type | 3 position Tri-Grip dog fixings |
| Construction Material | Mineral filled ABS, RoHS compliant |
| Weight | 2.54 kg (6 lb 10 oz) |
| Pre-Construction Bracket | CB6 Pre-Construction Bracket (Purple) |
| Back Box | CCBOX-R / CMBOX-R |
