A 6 1/2 inch C-CAM bass driver and a more highly specified version of the C-CAM Gold Dome tweeter offer an extended high-frequency response to 30 kHz, as well as higher output and power handling capacity than the 2-way models.Read More
View Delivery & Pickup OptionsAdd Postal Code
Optimum imaging and set-up are established via a pivoting tweeter, high frequency (+3 dB / 0 dB / -3 dB) level adjustment, and boundary compensation (on / off) controls.
Optional square or premium grille can be used with this model.

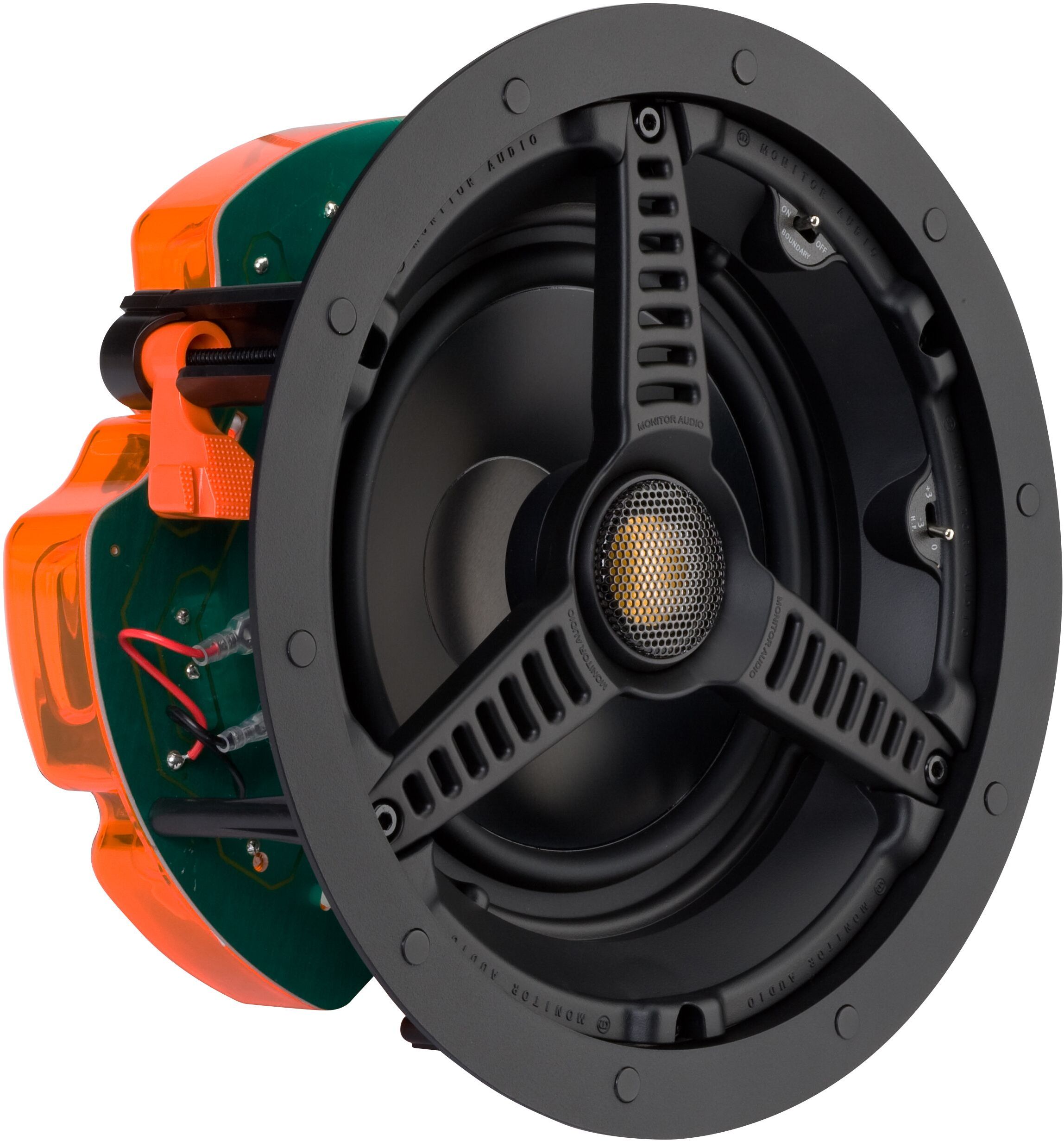

6 1/2 inch C-CAM bass driver
General Specs | |
| Product Weight (lbs.) | 4.5 |
| Frequency Response | 60 Hz – 30 kHz |
| Manufacturer Warranty | Limited Lifetime |
| RMS Power Handling (Watts) | 75 |
| Color | Black |
| Impedance | 6 ohms |
| Number of Speakers | 1 |
| Sensitivity | 88.5 |
| Speaker Type | In-Ceiling Speakers |
Additional Specifications | |
| Frequency Response | 60 Hz – 30 kHz |
| Nominal Impedance | 6 ohms |
| Sensitivity (1W@1M) | 88.5 dB |
| Maximum SPL | 108 dBA |
| Power Handling (RMS) | 75 W |
| Recommended Amplifier Requirements | 20 – 75 W |
| Drive Unit Complement | 6 1/2" C-CAM cone bass driver, 1” C-CAM pivoting Gold Dome tweeter |
| Adjustment Controls | HF Level Switch (+3 dB / 0 dB / -3 dB), Boundary Compensation Switch |
| Overall Diameter (Including Grille) | 250 mm (9 13/16") |
| Overall Depth (Including Grille) | 120 mm (4 3/4") |
| Mounting Depth | 116 mm (4 9/16") |
| Cut-Out Hole Diameter | 211 mm (8 1/4") |
| Optional Square Grille - Outer Dimensions | 249 x 249 mm (9 3/16") |
| Fixing Type | 3 position Tri-Grip dog fixings |
| Construction Material | Mineral filled ABS, RoHS compliant |
| Weight | 2.04 kg (4 lb 8 oz) |
| Pre-Construction Bracket | CB6 Pre-Construction Bracket (Purple) |
| Back Box | CCBOX-R / CMBOX-R |
