Features surround mode selection of dipole (diffuse sound) or bipole (direct sound) operation for super-discreet home theatre sound.Read More
View Delivery & Pickup OptionsAdd Postal Code

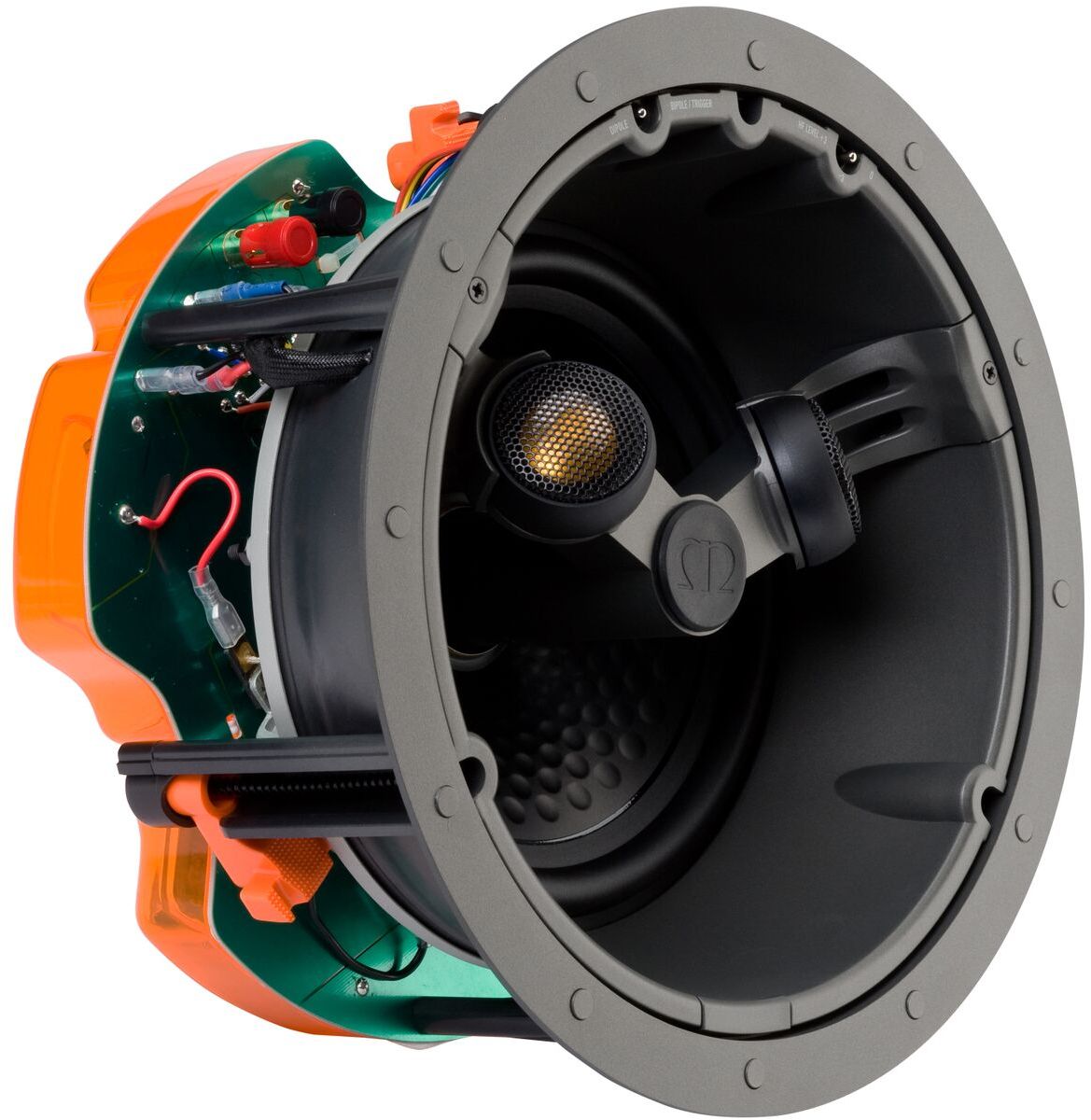

Incorporates an 8-inch C-CAM RST bass driver 8-inch C-CAM bass driver and dual 1-inch C-CAM Gold Dome tweeters mounted at a precise fixed-angle for optimised performance.
Dual 1-inch C-CAM Gold Dome tweeters
8-inch C-CAM RST bass driver
8-inch C-CAM bass driver
Optional square grille can be used with this model
This product is now available to use with home theatre design software, The CEDIA Designer.
General Specs | |
| Product Weight (lbs.) | 7 |
| Frequency Response | 45 Hz – 30 kHz |
| Manufacturer Warranty | Limited Lifetime |
| RMS Power Handling (Watts) | 120 |
| Color | Black |
| Impedance | 6 ohms |
| Number of Speakers | 1 |
| Sensitivity | 90 |
| Speaker Type | In-Ceiling Speakers |
Additional Specifications | |
| Frequency Response | 45 Hz – 30 kHz |
| Nominal Impedance | 6 ohms |
| Sensitivity (1W@1M) | 90 dB |
| Maximum SPL | 111.6 dBA |
| Power Handling (RMS) | 120 W |
| Recommended Amplifier Requirements | 30 – 120 W |
| Drive Unit Complement | 8" C-CAM cone bass driver featuring RST, 2 x 1" C-CAM fixed angle Gold Dome tweeters |
| Adjustment Controls | HF Level Switch (+3 dB / 0 dB / -3 dB), Bipole / Dipole Switch with Additional 12v Trigger Switching |
| Overall Diameter (Including Grille) | 285 mm (11 1/4") |
| Overall Depth (Including Grille) | 161 mm (6 5/16") |
| Mounting Depth | 157 mm (6 3/16") |
| Cut-Out Hole Diameter | 247 mm (9 3/4") |
| Optional Square Grille - Outer Dimensions | 285 x 285 mm (11 1/4") |
| Fixing Type | 3 position Tri-Grip dog fixings |
| Construction Material | Mineral filled ABS, RoHS compliant |
| Weight | 3.2 kg (7 lb) |
| Pre-Construction Bracket | CB8 Pre-Construction Bracket (Green) |
| Back Box | CMBOX-R |
