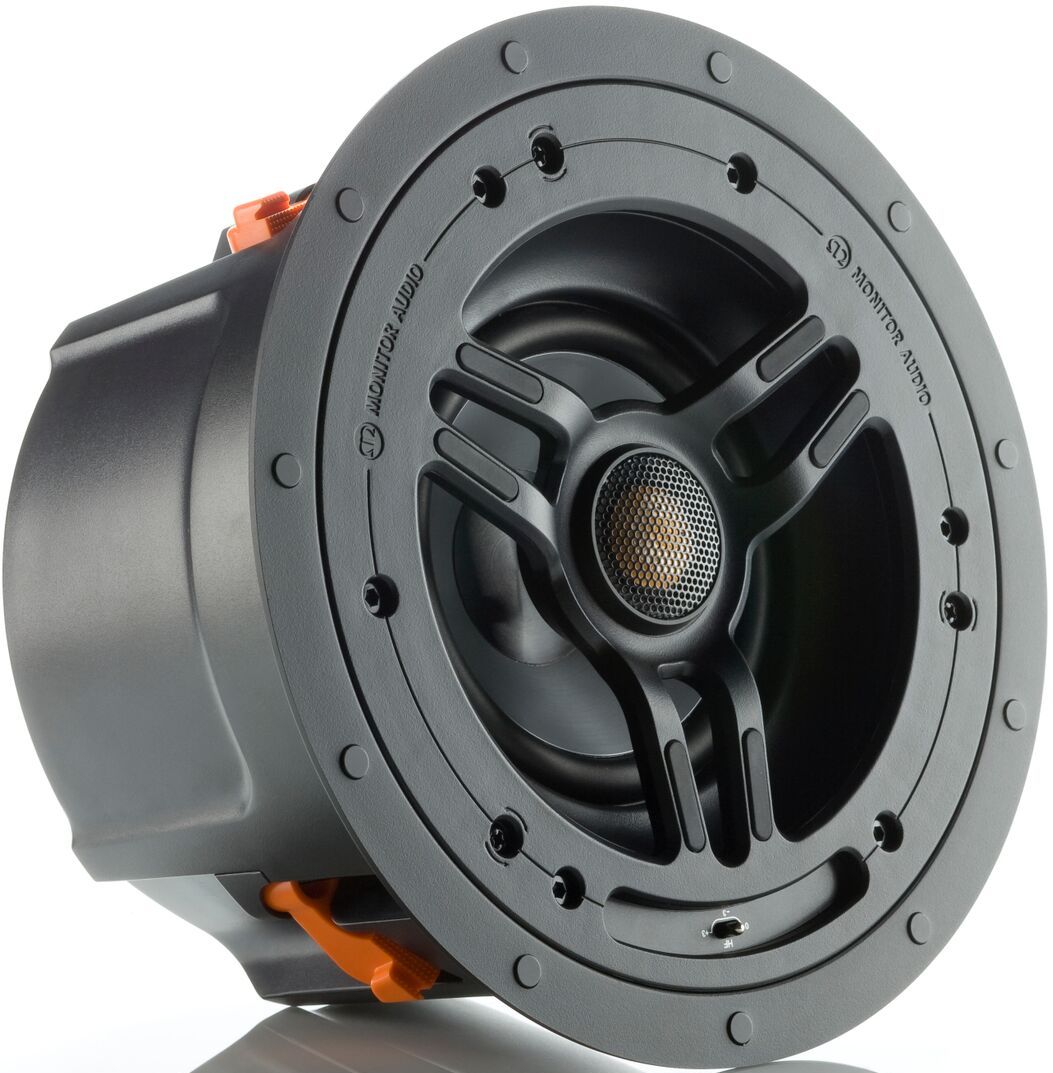

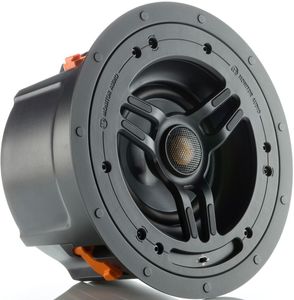

Offering high impact audio and discreet trimless design for smaller environments the entry-level CP-CT150 in-ceiling model features a 5" MMP II bass driver, high frequency level adjustment (+3 dB / 0 dB / -3 dB) and a pivoting C-CAM tweeter.Read More
View Delivery & Pickup OptionsAdd Postal Code
Optional square or premium grille can be used with this model.
Pivoting C-CAM Gold Dome tweeter and MMP II bass driver.
High overall efficiency.
High frequency level adjustment (+/-3 dB).
Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
Magnetic and easily removable steel grille.
Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.
This product is now available to use with home theatre design software, The CEDIA Designer.
General Specs | |
| Product Weight (lbs.) | 4.75 |
| Frequency Response | 75 Hz - 25 kHz |
| Manufacturer Warranty | Limited Lifetime |
| RMS Power Handling (Watts) | 50 |
| Color | Black |
| Impedance | 6 ohms |
| Number of Speakers | 1 |
| Sensitivity | 85 |
| Speaker Type | In-Ceiling Speakers |
Additional Specifications | |
| Frequency Response | 75 Hz - 25 kHz |
| Nominal Impedance | 6 ohms |
| Sensitivity (1W@1M) | 85 dB |
| Maximum SPL | 102.8 dBA |
| Power Handling (RMS) | 50 W |
| Recommended Amplifier Requirements | 20 - 50 W |
| Crossover Frequency | 2.8 kHz @ 12 dB / Octave |
| Drive Unit Complement | 2-Way, 5" MMP II cone bass driver, 1" C-CAM pivoting Gold Dome tweeter |
| Adjustment Controls | HF Level Switch (+3 dB / 0 dB / -3 dB) |
| Overall Diameter (Including Grille) | 250 mm (9 13/16") |
| Overall Depth (Including Grille) | 155 mm (6 1/8") |
| Cut-Out Hole Diameter | 212 mm (8 3/8") |
| Mounting Depth | 151 mm (5 15/16") |
| Optional Square Grille - Outer Dimensions | 249 x 249 mm (9 13/16") |
| Fixing Type | 3 position Tri-Grip dog leg fixings |
| Construction Material | Mineral Filled ABS Plastic (RoHS2 Compliant) |
| Weight | 2.14 kg (4 lb 12 oz) |
| Connection | Gold plated 'push' type terminals |
| Pre-Construction Bracket | CB6 Pre-Construction Bracket (Purple) |
| Back Box | CCBOX-L |
