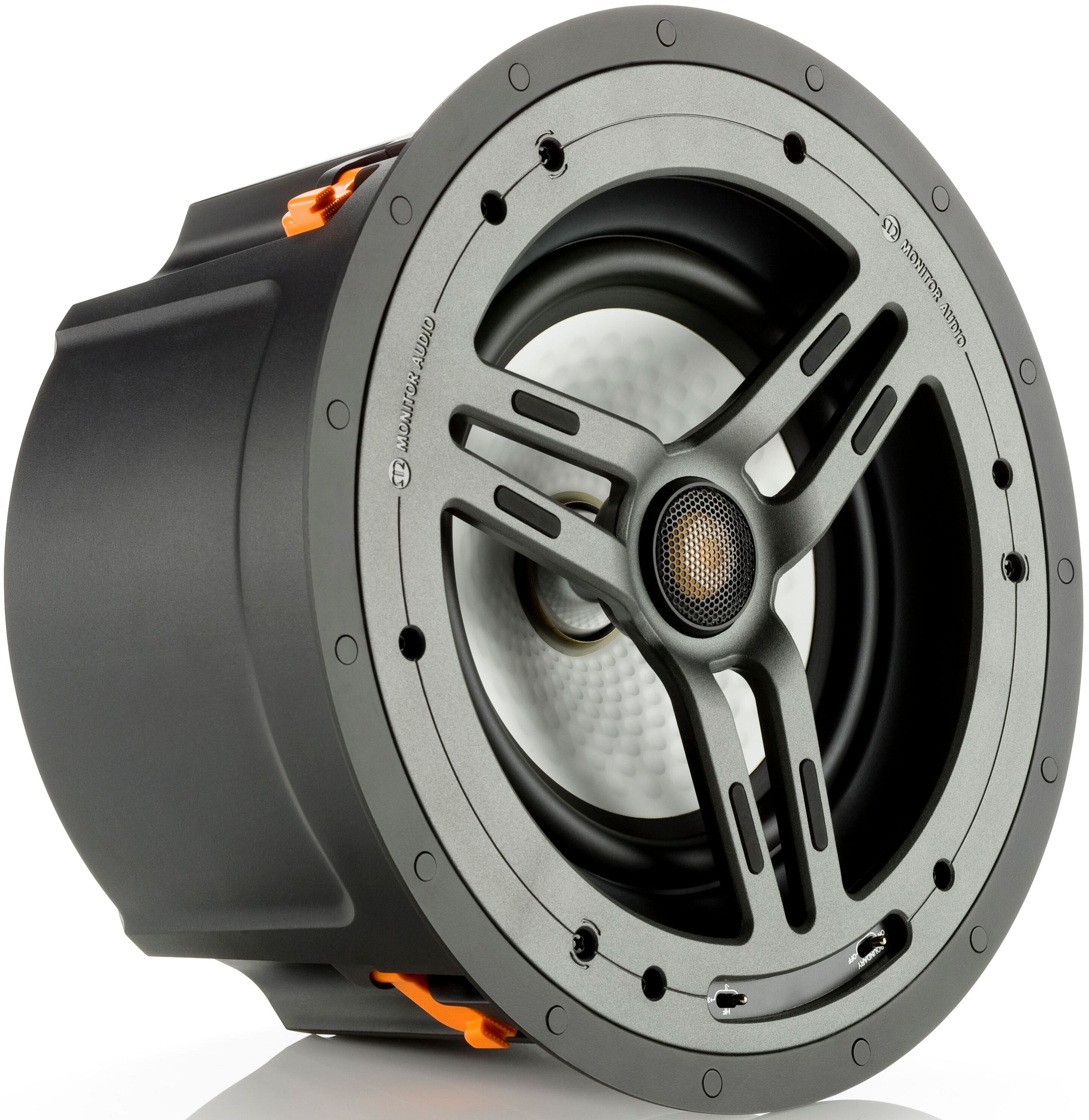

Alongside a pivoting C-CAM tweeter, the CP-CT380 model introduces a powerful 8" C-CAM bass driver featuring the Rigid Surface Technology (RST) cone surface employed by our range-topping home audio speaker systems.Read More
View Delivery & Pickup OptionsAdd Postal Code
Optional square grille can be used with this model.
Pivoting C-CAM gold dome tweeter.
C-CAM bass driver featuring Rigid Surface Technology (RST).
High overall efficiency.
High frequency level adjustment (+/-3dB).
Boundary compensation controls.
Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
Magnetic and easily removable steel grille.
Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.
This product is now available to use with home theatre design software, The CEDIA Designer.
General Specs | |
| Product Weight (lbs.) | 8.25 |
| Frequency Response | 50 Hz - 25 kHz |
| Manufacturer Warranty | Limited Lifetime |
| RMS Power Handling (Watts) | 120 |
| Color | Black |
| Impedance | 6 ohms |
| Number of Speakers | 1 |
| Sensitivity | 89 |
| Speaker Type | In-Ceiling Speakers |
Additional Specifications | |
| Frequency Response | 50 Hz - 25 kHz |
| Nominal Impedance | 6 ohms |
| Sensitivity (1W@1M) | 89 dB |
| Maximum SPL | 109.6 dBA |
| Power Handling (RMS) | 120 W |
| Recommended Amplifier Requirements | 30 - 120 W |
| Crossover Frequency | 2.5 kHz @ 12dB / Octave |
| Drive Unit Complement | 2-Way, 8" C-CAM RST cone bass driver, 1" C-CAM pivoting Gold Dome tweeter |
| Adjustment Controls | HF Level Switch, (+3 dB / 0 dB / -3 dB), Boundary Compensation Switch |
| Overall Diameter (Including Grille) | 309 mm (123/16") |
| Overall Depth (Including Grille) | 187 mm (7 3/8") |
| Cut-Out Hole Diameter | 274 mm (1013/16") |
| Mounting Depth | 181 mm (71/8") |
| Optional Square Grille - Outer Dimensions | 309 x 309 mm (123/16") |
| Fixing Type | 3 position Tri-Grip dog leg fixings |
| Construction Material | Mineral Filled ABS Plastic (RoHS2 Compliant) |
| Weight | 3.74 kg (8 lb 4 oz) |
| Connection | Gold plated 'push' type terminals |
| Pre-Construction Bracket | CB10 Pre-Construction Bracket (Light Brown) |
