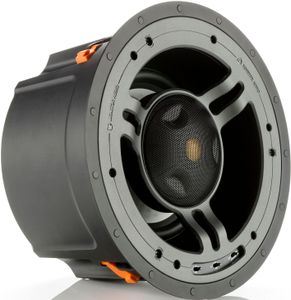

Incorporating Monitor Audio’s innovative, pivoting Inverted Dual Concentric (IDC) midrange/tweeter module and 8" RST C-CAM bass driver, the three-way CP-CT380IDC represents the highest level of new CP performance. The IDC module houses a 4" C-CAM inverted midrange driver surrounding a 25 mm C-CAM Gold Dome tweeter.Read More
View Delivery & Pickup OptionsAdd Postal Code
Optional square grille can be used with this model.
Pivoting module consisting of IDC midrange driver and Gold Dome tweeter.
C-CAM bass driver featuring Rigid Surface Technology (RST).
High overall efficiency.
High frequency level adjustment (+/-3dB).
Midrange frequency level adjustment (+/-3 dB).
Boundary compensation controls.
Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
Magnetic and easily removable steel grille.
Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.
This product is now available to use with home theatre design software, The CEDIA Designer.
General Specs | |
| Product Weight (lbs.) | 9.5 |
| Frequency Response | 50 Hz - 30 kHz |
| Manufacturer Warranty | Limited Lifetime |
| RMS Power Handling (Watts) | 120 |
| Color | Black |
| Impedance | 6 ohms |
| Number of Speakers | 1 |
| Sensitivity | 89 |
| Speaker Type | In-Ceiling Speakers |
Additional Specifications | |
| Frequency Response | 50 Hz - 30 kHz |
| Nominal Impedance | 6 ohms |
| Sensitivity (1W@1M) | 89 dB |
| Maximum SPL | 109.6 dBA |
| Power Handling (RMS) | 120 W |
| Recommended Amplifier Requirements | 30 - 120 W |
| Crossover Frequency | Bass low pass: 300 Hz @ 6 dB / Octave, Mid: 300 Hz @ 6 dB / Octave, & 3 kHz @ 12 dB / Octave |
| Drive Unit Complement | 3-Way, 8" C-CAM RST cone bass driver, 4" C-CAM IDC cone mid range driver, 1" C-CAM Gold Dome tweeter , (tweeter & midrange driver combined in a pivoting module) |
| Adjustment Controls | HF Level Switch (+3 dB / 0 dB / -3 dB), MF Level Switch (+ 3dB/ 0 dB/ -3 dB) , Boundary Compensation Switch |
| Overall Diameter (Including Grille) | 309 mm (123/16") |
| Overall Depth (Including Grille) | 187 mm (7 3/8") |
| Cut-Out Hole Diameter | 274 mm (1013/16") |
| Mounting Depth | 181 mm (71/8") |
| Optional Square Grille - Outer Dimensions | 309 x 309 mm (123/16") |
| Fixing Type | 3 position Tri-Grip dog leg fixings |
| Construction Material | Mineral Filled ABS Plastic (RoHS2 Compliant) |
| Weight | 4.3 kg (9 lb 8 oz) |
| Connection | Gold plated 'push' type terminals |
| Pre-Construction Bracket | CB10 Pre-Construction Bracket (Light Brown) |
