The CP-WT240LCR is a multi-purpose speaker, for portrait or landscape applications as a high performance music or theatre satellite.Read More
View Delivery & Pickup OptionsAdd Postal Code

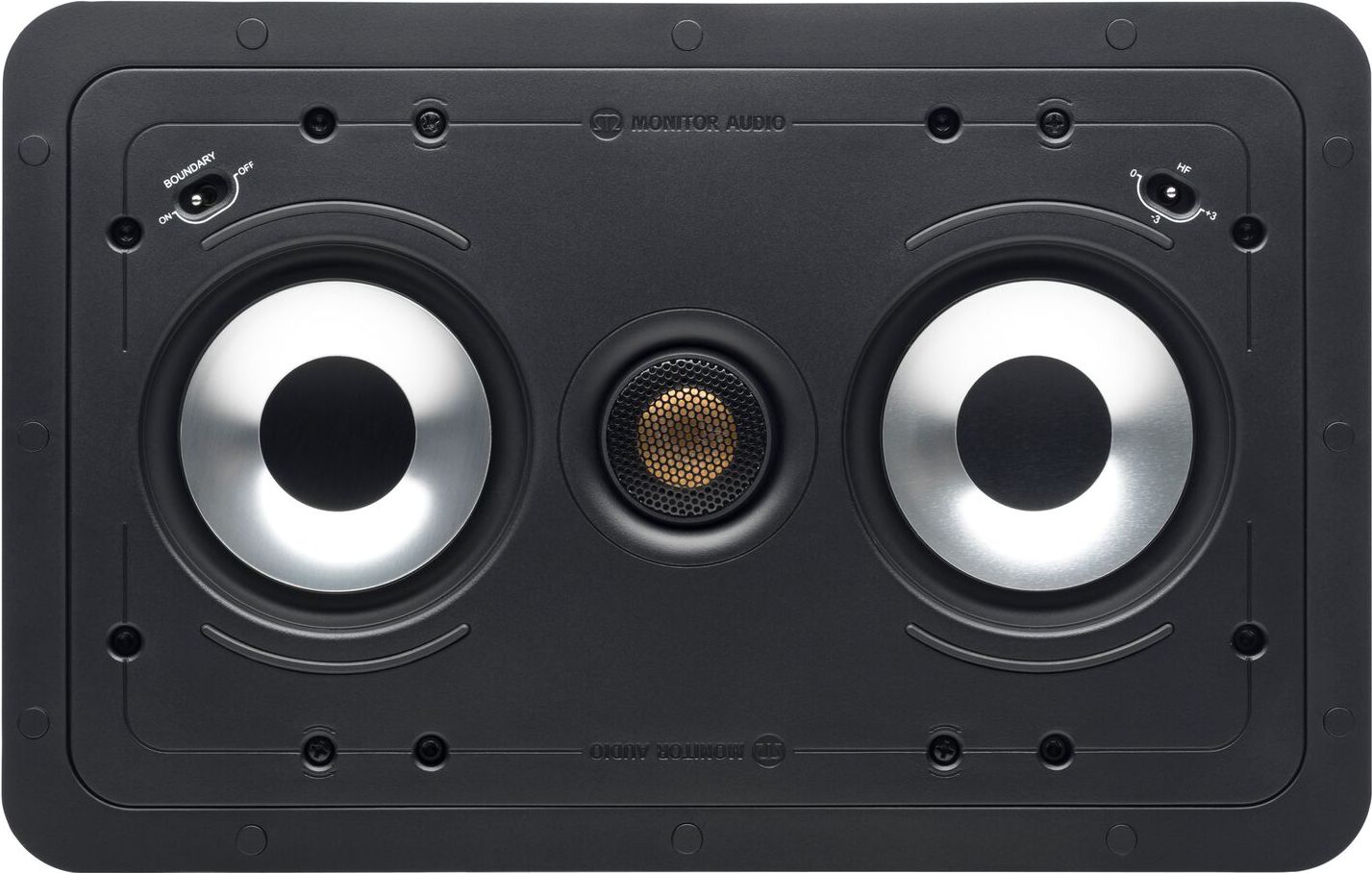

Utilising twin 4" C-CAM drivers astride a C-CAM tweeter, the drivers offer greater radiating area working in tandem than a single 6" bass driver.
Pivoting C-CAM Gold Dome tweeter.
2 x C-CAM bass drivers.
High overall efficiency.
High frequency level adjustment (+/-3 dB).
Boundary compensation controls.
Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
Magnetic and easily removable steel grille.
Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.
This product is now available to use with home theatre design software, The CEDIA Designer.
General Specs | |
| Product Weight (lbs.) | 5.5 |
| Frequency Response | 60 Hz - 25 kHz |
| Manufacturer Warranty | Limited Lifetime |
| RMS Power Handling (Watts) | 100 |
| Color | Black |
| Impedance | 6 ohms |
| Number of Speakers | 1 |
| Sensitivity | 88 |
| Speaker Type | In-Wall Speakers |
Additional Specifications | |
| Frequency Response | 60 Hz - 25 kHz |
| Nominal Impedance | 6 ohms |
| Sensitivity (1W@1M) | 88 dB |
| Maximum SPL | 108.8 dBA |
| Power Handling (RMS) | 100 W |
| Recommended Amplifier Requirements | 20 - 100 W |
| Crossover Frequency | 2.6 kHz @ 12 dB / Octave |
| Drive Unit Complement | 2 x 4" C-CAM cone bass driver, 1" C-CAM pivoting Gold Dome tweeter |
| Adjustment Controls | HF Level Switch (+3 dB / 0 dB / -3 dB), Boundary Compensation Switch |
| Overall Dimensions (H x W x D) | 217 x 333 mm (8 9/16 x 13 1/16") |
| Overall Depth (Including Grille) | 103 mm (4 1/16") |
| Cut-Out Dimensions | 183 x 299 mm (7 3/16 x 11 3/4") |
| Mounting Depth | 97 mm (3 13/16") |
| Fixing Type | 4 position Tri-Grip dog leg fixings |
| Construction Material | Mineral Filled ABS Plastic (RoHS2 Compliant) |
| Weight | 2.5 kg (5 lb 8 oz) |
| Pre-Construction Bracket | WB4LCR Pre-Construction Bracket (Dark Brown) |
