Product Dimensions 1.69"h x 17.25"w x 16"d

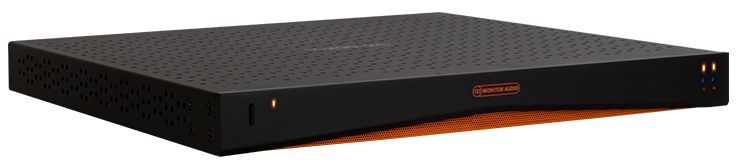

The IA200-2C Installation Amplifier supplies up to 200 watts per channel at 4 ohms. A ‘Connect’ amplifier, it employs our Connect IP interface, a web application which can be accessed by any device connected to the internet with a web browser on the same network.Read More
View Delivery & Pickup OptionsAdd Postal Code
The IA200-2C Installation Amplifier supplies up to 200 watts per channel at 4 ohms. As a Monitor Audio ‘Connect’ amplifier, it utilises our Connect IP interface, a web application which can be accessed by any device connected to the internet with a web browser on the same network.
A slim 1U rack height, it universally fits into most racks whilst delivering 93% energy efficiency. The IP control is via the RJ-45 input, controlling power On/Off, volume, muting, and input source selections. A visual match for the rest of the Monitor Audio Installation Amplifier line, the IA200-2C is ready for any project.
200 x2 @ 4Ohms via Hypex Amplifier modules
1U Chasis
Full IP Control
Fully customizble acousitic settings
Important: Please ensure the firmware is up to date before downloading IR Codes, IP Codes or the Crestron/Control4 drivers, which can be found in the Downloads area.
General Specs | |
| Depth (in.) | 16 |
| Height (in.) | 1.69 |
| Impedance | 20k ohms |
| Width (in.) | 17.25 |
| Manufacturer Warranty | 5 Year |
| Product Weight (lbs.) | 11.88 |
| Color | Black |
General | |
| 'Connect' IP Control | Yes |
| Channel Number | 2 (1 Stereo Pair) |
| Power (W / Channel) | 4 ohms | 200 W |
| Power (W / Channel) | 8 ohms | 150 W |
| Power (W / Channel) | Bridge (8 ohms) | 470 W (1CH) |
| Input Impedance | 20 K ohms |
| Output Impedance (Loop RCA) | 600 ohms |
| Input Sensitivity | 100 mV / 1 W, 1230 mV – Full power |
| Maximum Input Voltage | 2.9 V |
| Signal to Noise (SN:R) | -100 dB (20 Hz – 20 kHz) |
| Frequency Response | 5 Hz – 50 kHz |
| Total Harmonic Distortion THD + N@1 KHz | 0.03% |
| Rack Height | 1U |
| Dimensions (Excluding Feet (H x W x D)) | 42.4 x 438 x 427 mm (1.69 x 17.25 x 16.82") |
| Dimensions (Including Feet (H x W x D)) | 52.8 x 438 x 427 mm (2.06 x 17.25 x 16.82") |
| Width (including rack brackets) | 482 mm (19") |
| IP Communication | TCP/IP (RJ-45 10/100 Base T) |
| Mains Operating Voltage | 100 – 120 V @ 60 Hz; 220 – 240 V @ 50 Hz |
| Fuse Type | 5 A (T5AL ~ 250VAC) |
| Standby Power Consumption | <0.5 W (green mode) |
| Networked Standby Power Consumption | <2 W |
| Weight | 5.3 kg (11 lb 10 oz) |
