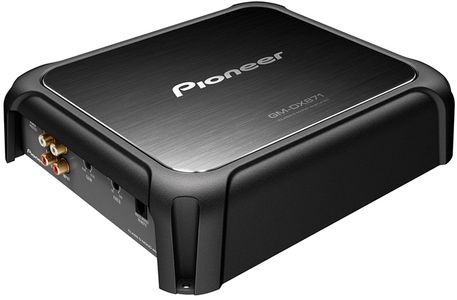

Pioneer 1-Channel Mono Amplifier features high quality textured aluminum panel and tough frame.Read More
View Delivery & Pickup OptionsAdd Postal Code
1,600 Watts Max Power
High Quality Textured Aluminum Panel and Tough Frame
Gold-plated RCA Terminals
HQ Sound Parts
Bass Boost Remote included
General Specs | |
| Color | Black |
| Amplifier Class | Class D |
| Color Finish Name | Black |
| Wattage | 1600 |
| Amplifier Channels | Mono Block |
| Manufacturer Warranty | 1 Year |
General | |
| RCA Inputs | MONO (Gold Plated) |
| High Quality Sound Parts | Yes |
| Crossover Type | Variable LPF |
| Amplifer Class | CLASS-D |
| Speaker Level Inputs | Yes |
| Warranty (must be purchased from an Authorized Pioneer Dealer) | 1 Year |
Specifications | |
| Continuous Power (RMS) Output at 1 Ohm | 800W RMS x 1 |
| Continuous Power (RMS) Output at 4 Ohms | 300W RMS x 1 |
| Total Harmonic Distortion (THD) | < 0.5% (100 Hz) |
| Low-Pass Crossover Frequency | 40 Hz |
| High-Pass Crossover Frequency | 240 Hz |
| Bass Boost Level | 0 dB to 18 dB |
| Hi-Volt Input Level Control | 200 mV to 6.5 V |
| Load Impedance Allowance (Ohms) | 1 to 8 |
| Dimensions | 10-3/8" x 2-3/8" x 7-7/8" |
| Continuous Power (RMS) Output at 2 Ohms | 500W RMS x 1 |
| Frequency Response | 10 Hz to 240 Hz |
| Signal-to-Noise (SN) Ratio | > 100 dB |
| Low Pass Slope (dB/octave) | -12dB |
| Bass Boost Frequency | 50 Hz |
| Bass Boost Remote | Yes |
| Terminal Type | Block |
| Protection Control System | Yes |
