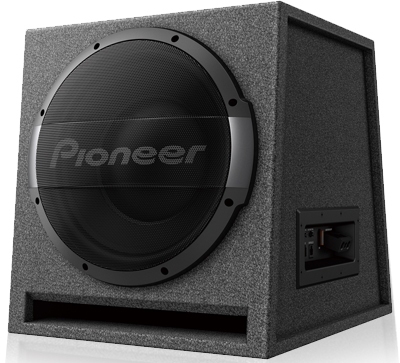

Pioneer 12" Black Ported Active Enclosure Subwoofer features fully covered steel mesh grille and remote control included.Read More
View Delivery & Pickup OptionsAdd Postal Code
1,500W Max. 500W Nom. Power (Sub)
600W Max. 300W Nom. Power (Amp)
Dimensions: 14-5/8" x 18-1/8" x 15-3/4"
Remote Control Included
General Specs | |
| Color | Black |
| Frequency | 20 Hz to 2.9 kHz |
| Color Finish Name | Black |
| Manufacturer Warranty | 1 Year |
| RMS Power Handling (Watts) | 1000 |
| Peak Power Rating (Watts) | 3000 |
| Subwoofer Size | 12" |
Key Features | |
| System Type | Powered |
| Frequency Range | 20 Hz to 2.9 kHz |
| Warranty | 1 Year |
| Maximum Peak Power Handling - Watts | 1500 Watts |
| Bass Boost Frequency | 40Hz to 100Hz |
| Built In Amp | Yes |
| Amp DIN | 300 Watts |
| Input Level (@ Gain Max) Speaker Line | 2 V+2 V/5 kOhm |
| Amp Max Current Consumption | 25 A |
| Sensitivity (1W/1m) | 89 dB |
| CTA-2031 Compliant | Yes |
| Continuous Power handling (RMS) - Watts | 500 Watts |
| Speaker Grill | Fully Covered Steel Mesh Grille |
| Bass Boost Level | 0 to +12 dB |
| Amp Max Power Output | 600 Watts |
| Input Level (@ Gain Max) RCA | 100 mV+100 mV/22 kOhm |
| Power Source | Dc 14.4 V |
| Amp Grounding | Negative |
Build | |
| Shape | Round |
| Cone Material | Cellulose fiber |
| Surround Material | Urethane |
| Basket Material | Stamped Metal |
| Magnet Weight | 42.3oz |
| Voice Coil Bobbin | Kapton |
| Damper | Aramid |
| Size | 12" |
| Center Cap Material | PP |
| Surround Type | Rolled |
| Magnet Material | Ferrite |
| Voice Coil Type | Single Voice |
| Voice Coil wire | Copper |
| Gasket | ABS |
