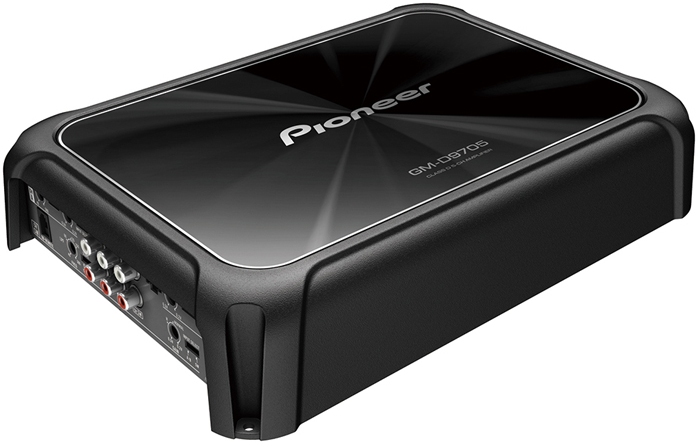

Pioneer 5-Channel Amplifier features high quality flat panel and tough frame.Read More
View Delivery & Pickup OptionsAdd Postal Code
2,000 Watts Max Power
High Quality Textured Flat Panel and Tough Frame
Variable High-Pass and Low-Pass Filters
Bass Boost Remote included
General Specs | |
| Color | Black |
| Amplifier Class | Class D |
| Color Finish Name | Black |
| Wattage | 2000 |
| Amplifier Channels | 5 |
| Manufacturer Warranty | 1 Year |
General | |
| RCA Inputs | 5-CH |
| Speaker Level Inputs | Yes |
| Bridgeable | Yes |
| Amplifer Class | CLASS-D |
| Crossover Type | Adjustable HPF/LPF |
| Warranty (must be purchased from an Authorized Pioneer Dealer) | 1 Year |
Specifications | |
| Continuous Power (RMS) Output at 2 Ohms | 100W x 4 (Main channel), 600W x 1 (Subwoofer channel) |
| Continuous Power (RMS) Output - Bridged at 4 Ohms | 200W x 2 (Main channel), 350W x 1 (Subwoofer channel) |
| Total Harmonic Distortion (THD) | A/B CH: <0.05% (1 kHz) / SUB CH: <0.05% (100Hz) |
| Fuse Rating | 30A x 3 |
| Low Pass Slope (dB/octave) | -12dB/oct (A/B CH) / -12dB/-24dB (SUB CH) |
| Bass Boost Frequency | 50 Hz |
| Bass Boost Remote | Yes |
| Hi-Volt Input Level Control | 200 mV to 6.5 V |
| Load Impedance Allowance (Ohms) | 2 to 4 |
| Dimensions | 12.4" x 2" x 7.87" |
| Continuous Power (RMS) Output at 4 Ohms | 75W x 4 (Main channel), 350W x 1 (Subwoofer channel) |
| Frequency Response | A/B CH: 10 Hz ~ 50 kHz (+0dB, -3dB) / SUB CH: 10Hz ~ 500 Hz (+0dB, -3dB) |
| Signal-to-Noise (SN) Ratio | > 94dB |
| Low-Pass Crossover Frequency | 40 Hz |
| High-Pass Crossover Frequency | 500 Hz |
| Bass Boost Level | 0 dB to 18 dB |
| Automatic Signal Sensing and Turn-On | Yes |
| Terminal Type | Block |
| Protection Control System | Yes |
