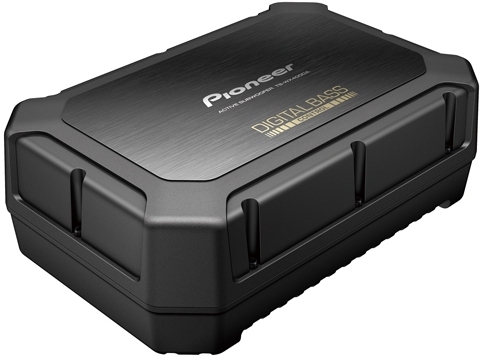

Pioneer 9" x 5-1/2" Black Compact Active Subwoofer features high power built-in Class-D amplifier and selectable bass modes.Read More
View Delivery & Pickup OptionsAdd Postal Code
250 Watts Max Power
100 Watts Nominal
High Power Built-in Class-D Amplifier
Selectable Bass Modes: DEEP and DYNAMIC
Compact Design
General Specs | |
| Color | Black |
| Color Finish Name | Black |
| Manufacturer Warranty | 1 Year |
| RMS Power Handling (Watts) | 100 |
| Peak Power Rating (Watts) | 250 |
| Subwoofer Size | 9" |
Key Features | |
| System Type | Powered |
| Frequency Range | DEEP: 20 Hz to 100 Hz, DYNAMIC: 20 Hz to 100 Hz |
| Warranty | 1 Year |
| Maximum Peak Power Handling - Watts | 250 Watts |
| Amp Max Power Output | 250 Watts |
| Input Level (@ Gain Max) RCA | DEEP 85 mV+85 mV/22 kOhm, DYNAMIC 75 mV+75 mV/22kOhm |
| Power Source | DC 14.4V |
| Amp Grounding | Negative |
| Amp Max Current Consumption | 25 A |
| Sensitivity (1W/1m) | DEEP:72 dB, DYNAMIC:73 dB |
| CTA-2031 Compliant | Yes |
| Continuous Power handling (RMS) - Watts | 100 Watts |
| Built In Amp | Yes |
| Amp DIN | 100 Watts |
| Input Level (@ Gain Max) Speaker Line | DEEP 1.9 V+1.9 V/5 kOhm, DYNAMIC 1.7 V+1.7 V/5kOhm |
| Amp Max Current Consumption | 9.4 A |
Build | |
| Shape | Special |
| Cone Material | IMPP - Composite |
| Surround Material | Urethane |
| Basket Material | Stamped Metal |
| Magnet Weight | 26.8 oz |
| Voice Coil Bobbin | Kapton |
| Damper | Aramid |
| Size | 9" x 5-1/2" |
| Drive Cone Material | ABS |
| Surround Type | Rolled |
| Magnet Material | Ferrite |
| Voice Coil Type | Single Voice |
| Voice Coil wire | Copper |
