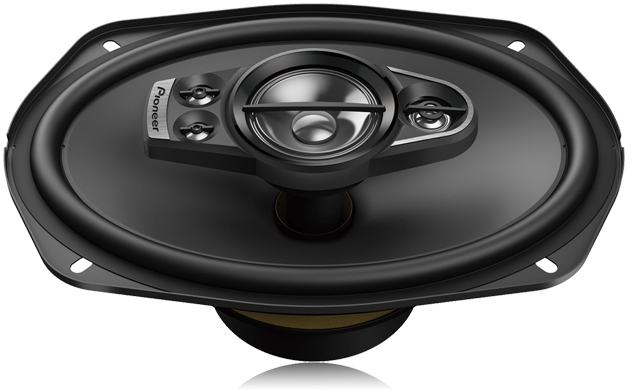

Pioneer A-Series 6"x 9" Black Coaxial Speakers features 6 x 9" carbon and mica reinforced Injection Molded Polypropylene (IMPP) cone constructionRead More
View Delivery & Pickup OptionsAdd Postal Code
700 Watts Max Power (120 Watts Nominal)
18mm Tweeter and 11mm Super Tweeter , 9mm Super Tweeter
2-1/4" polyetherimide (PEI) film cone midrange
6 x 9" carbon and mica reinforced Injection Molded Polypropylene (IMPP) cone construction
General Specs | |
| Impedance | 4 |
| Frequency | 22 Hz to 25 kHz |
| Color | Black |
| Manufacturer Warranty | 1 Year |
| Color Finish Name | Black |
| Collection | A-Series |
| Car Speaker Size | 6 x 9 |
| RMS Power Handling (Watts) | 120 |
| Peak Power Rating (Watts) | 700 |
System | |
| System Type | 5-way Coaxial |
| Frequency Range | 22 Hz to 25 kHz |
| Maximum Peak Power Handling | 700 Watts |
| Sound Pressure Level (Sensitivity) | 90 dB (+- 1.5dB) |
| Continuous Power Handling (RMS) | 120 Watts |
| Nominal Impedance | 4 ohms |
Woofer | |
| Diameter | 6 x 9" |
| Surround Material | Elastic polymer |
| Magnet Weight | 15.2 oz |
| Cone Material | Carbon and mica reinforced IMPP |
| Mounting Depth | 3-3/8" (Deep basket) |
| Magnet Material | Ferrite |
Tweeter | |
| Type | Triple Polyethylene terephthalate (PET) dome tweeter |
| Diameter | 9 mm (Super), 11 mm, and 18 mm |
Crossover Network | |
| Crossover Frequency | 3,600 Hz |
