Product Dimensions 2.83"h x 9.45"w x 7.87"d

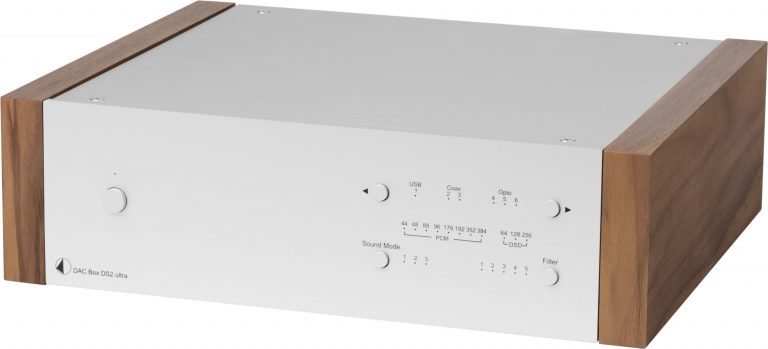

The advanced DAC Box DS2 ultra is an universal and very flexible D/A converter of the highest class. It offers full DSD256 support and upsampling of all input signals to 768kHz from USB, coaxial and optical inputs. This realizes high-resolution sound playback with a rich sound field and bass representation with less distortion.Read More
View Delivery & Pickup OptionsAdd Postal Code
Due to its class-leading audio performance DAC Box DS2 ultra is an ultimate high end bargain!
Top grade AK4490 D/A chip (32-bit PCM 768kHz / DSD256)
6 Inputs: 1x USB, 3x optical (TOSlink®), 2x coax (S/PDIF)
Up to 32bit/768kHz asynchronous USB (XMOS technology)
DSD64, DSD128 & DSD256 (DSD over PCM)
Audio Class 2 (USB 2.0 High Speed) driver for Windows included
Up to 24bit/192kHz for optical & coax inputs
5 selectable digital filter characteristics
3 selectable sound modes
High-end ultra low phase oscillator with superior noise rejection
RCA line level solid-state analogue output stage
Ultra linear & ultra low noise circuitry
Separate power supplies for every stage with advanced filter technology
Upgradeable with optional linear power supply
Full metal casing in silver or black
Optional with wooden side panels (rosewood, walnut, eucalyptus)
General Specs | |
| Product Weight (lbs.) | 4.5600 |
| Depth (in.) | 7.87 |
| Width (in.) | 9.45 |
| Height (in.) | 2.83 |
| Analog Audio(RCA) Output | 1 |
| Width (cm) | 24.00 |
| Height (cm.) | 7.19 |
| Depth (cm.) | 19.99 |
| Product Weight (kg) | 2.07 |
| Color | Silver |
Technical Specifications | |
| D/A-Converter | AK4490 32-bit PCM 768kHz / DSD256 |
| Sampling Rate Converter | AK4137EQ upsampling to 768kHz |
| Sampling Rates | USB: up to 32bit/768kHz, DSD256 (DoP); Coaxial: up to 24bit/192kHz; Optical: up to 24bit/192kHz |
| DSD-Support | DSD64, DSD128 and DSD256 |
| Filter Settings | 5 different selectable on front |
| Digital Inputs | USB B; 3 x Optical (TOSlink®); 2 x Coaxial (S/PDIF) |
| Frequency Response | 20Hz - 50kHz (+0/-1dB) |
| Analog Output | RCA/Cinch (Line) |
| Output Voltage | 2.2 Veff (switchable +6 dB gain gives 4.4 Veff ) |
| Digital Output | Optical (TOSlink®) |
| THD | 0.00085% |
| Crosstalk | -117 dB (10kHz@0dB) |
| Signal To Noise Ratio | 113 dB (20Hz - 20kHz) |
| Power Consumption | <1 Watt standby, 600mA max |
| Power Supply | 18V/1000mA DC (included) |
| Dimensions W x H x D | 206 x 71 x 220 mm (Alu), incl. sockets; 240 x 72 x 220 mm (Wood), incl. sockets |
| Weight | 1410 g (Alu), without power supply; 1880 g (Wood), without power supply |
