Product Dimensions 2.83"h x 8.11"w x 8.27"d
Four specific characteristics make this a true high-end preamplifier: 1. Fully balanced double mono design 2.class-A circuitry with no negative feedback 3. Tube output stage 4. Separate power supply as an upgrade option for further improved sound quality.Read More
View Delivery & Pickup OptionsAdd Postal Code

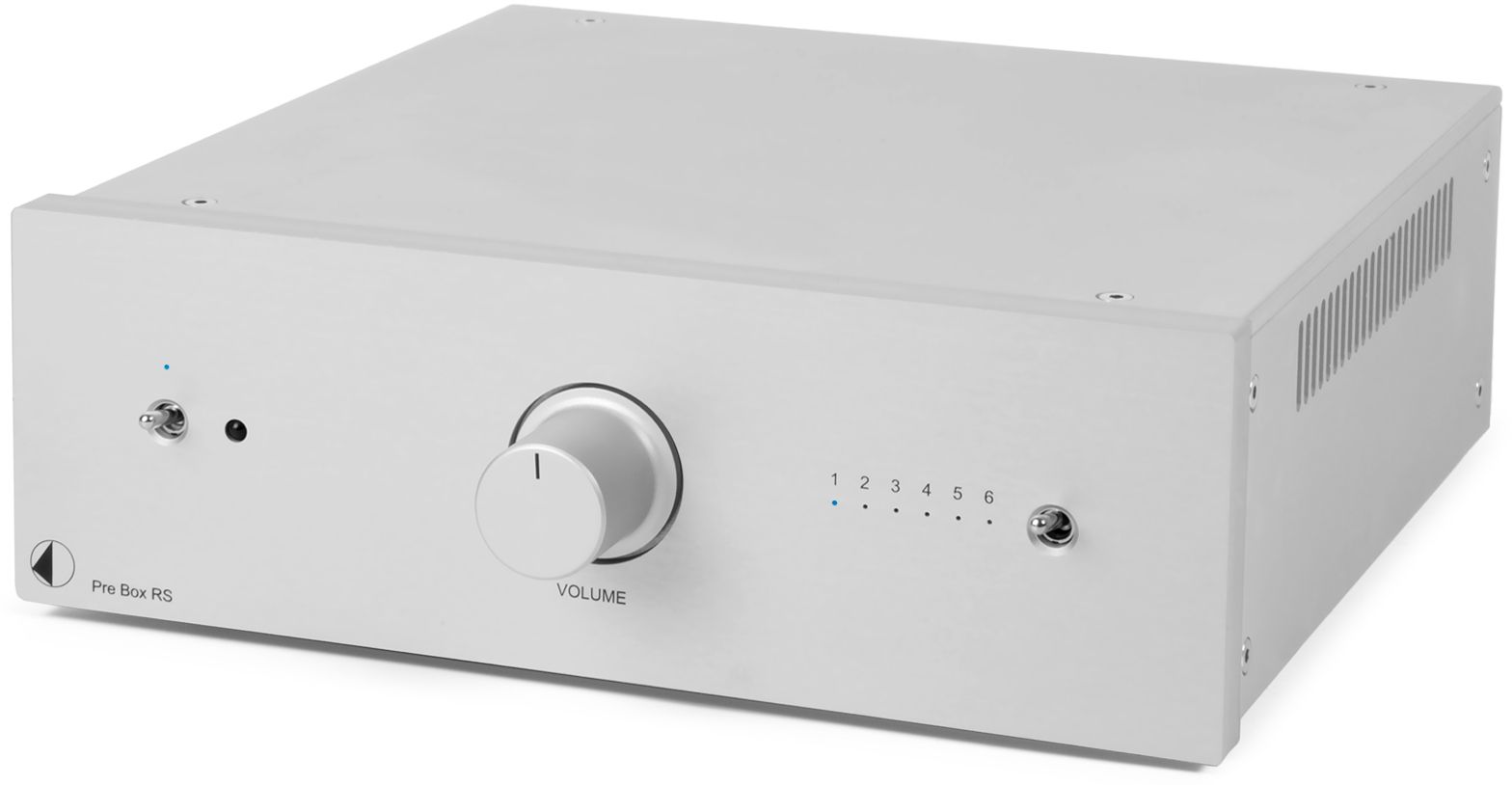

Pre Box RS offers 3-dimensional sound-staging, perfect micro dynamics and ultimate resolution combined with flexibility to use XLR and RCA sources. Perfectly combined with Pro-Ject Amp Box RS amplifiers, Pre Box RS will give pure sound experience, that the real audiophile is looking for. Pre Box RS utilizes a luxury casing, that is available in silver or black finish.
Fully balanced double mono design
Ultra-linear and ultra low noise
Pure Class A circuitry
Input switching via relais
Low ESR capacitors
Blue Alps volume control
3 XLR & 3 RCA inputs
1 Pre–out XLR & 1 Record-out RCA
DC power supply (< 1 watt standby power)
IR remote control included
Metal casing protects against vibration and interference
Available in black and silver
General Specs | |
| Product Weight (lbs.) | 4.3 |
| Depth (in.) | 8.27 |
| Width (in.) | 8.11 |
| Height (in.) | 2.83 |
| Analog Audio(RCA) Input | 3 |
| Color | Silver |
| Width (cm) | 20.60 |
| Height (cm.) | 7.19 |
| Depth (cm.) | 21.01 |
| Product Weight (kg) | 1.95 |
Technical Specifications | |
| Tube Assembly | 2x ECC88 (6922) |
| Frequency Response | 20 Hz - 50 kHz (+ 0dB/- 0.08 dB) |
| Signal To Noise Ratio | 95 dBA |
| THD | 0.06% |
| Line-Level Inputs | 3 pairs XLR & 3 pairs RCA/phono sockets |
| Input Impedance | 150k Ohms |
| Gain | 18 dB (XLR) |
| Outputs | 1 Pre-Out (XLR), 1x Rec-Out (RCA) |
| Outboard Power Supply | 18 V/1 A DC, suitable for your country's mains supply |
| Power Consumption | Typical 700 mA / < 1 Watt standby |
| Dimensions W x H x D | 206 x 72 x 210 mm, with sockets |
| Weight | 1950 g without power supply |
